unknown ABC part
- Batten
-
- Offline
Less
More
4 days 16 hours ago - 4 days 15 hours ago #1857
by Batten
Replied by Batten on topic unknown ABC part
Hi Giovanni
I think your curious part photo are components from a Sopwith-Kauper interrupter gear for a Sopwith Camel.

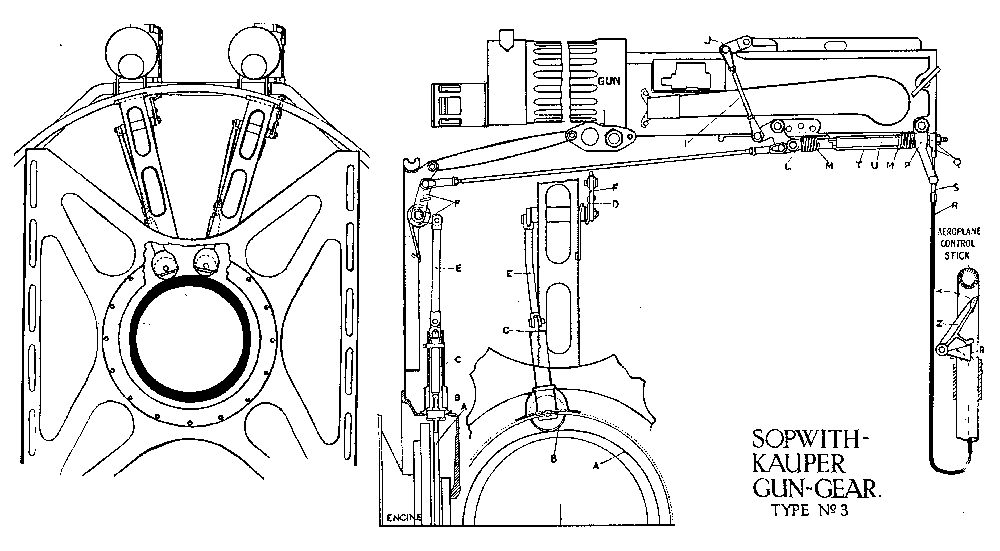

The following image is described as "A diagram from the maintenance manual for installation of Sopwith-Kauper synchronization (Mk.III) gear in early production Sopwith Camels (1917)" from the Wikipedia page on "synchronization gear". To me it look like a photo of a double cam interrupter gear (part A in the image below) with a cam follower (part C in the image below). It looks like the gear is propped up on a .303 bullet casing.
Is there a prize?
I think your curious part photo are components from a Sopwith-Kauper interrupter gear for a Sopwith Camel.
The following image is described as "A diagram from the maintenance manual for installation of Sopwith-Kauper synchronization (Mk.III) gear in early production Sopwith Camels (1917)" from the Wikipedia page on "synchronization gear". To me it look like a photo of a double cam interrupter gear (part A in the image below) with a cam follower (part C in the image below). It looks like the gear is propped up on a .303 bullet casing.
Is there a prize?
Last edit: 4 days 15 hours ago by Batten.
Please Log in or Create an account to join the conversation.
- gioorl
-
- Offline
Less
More
- Posts: 136
4 days 15 hours ago #1858
by gioorl
Replied by gioorl on topic unknown ABC part
I'm glad I didn't set a prize, your answer came back too quickly.
Didn't know you knew so much about guns, I'll have to be careful. Thank you though, your explanation makes sense.
Didn't know you knew so much about guns, I'll have to be careful. Thank you though, your explanation makes sense.
Please Log in or Create an account to join the conversation.
- Andrew Kelsey
- Offline
Less
More
- Posts: 51
4 days 5 hours ago #1860
by Andrew Kelsey
Replied by Andrew Kelsey on topic unknown ABC part
That’s fascinating - a most impressive and speedy response!
